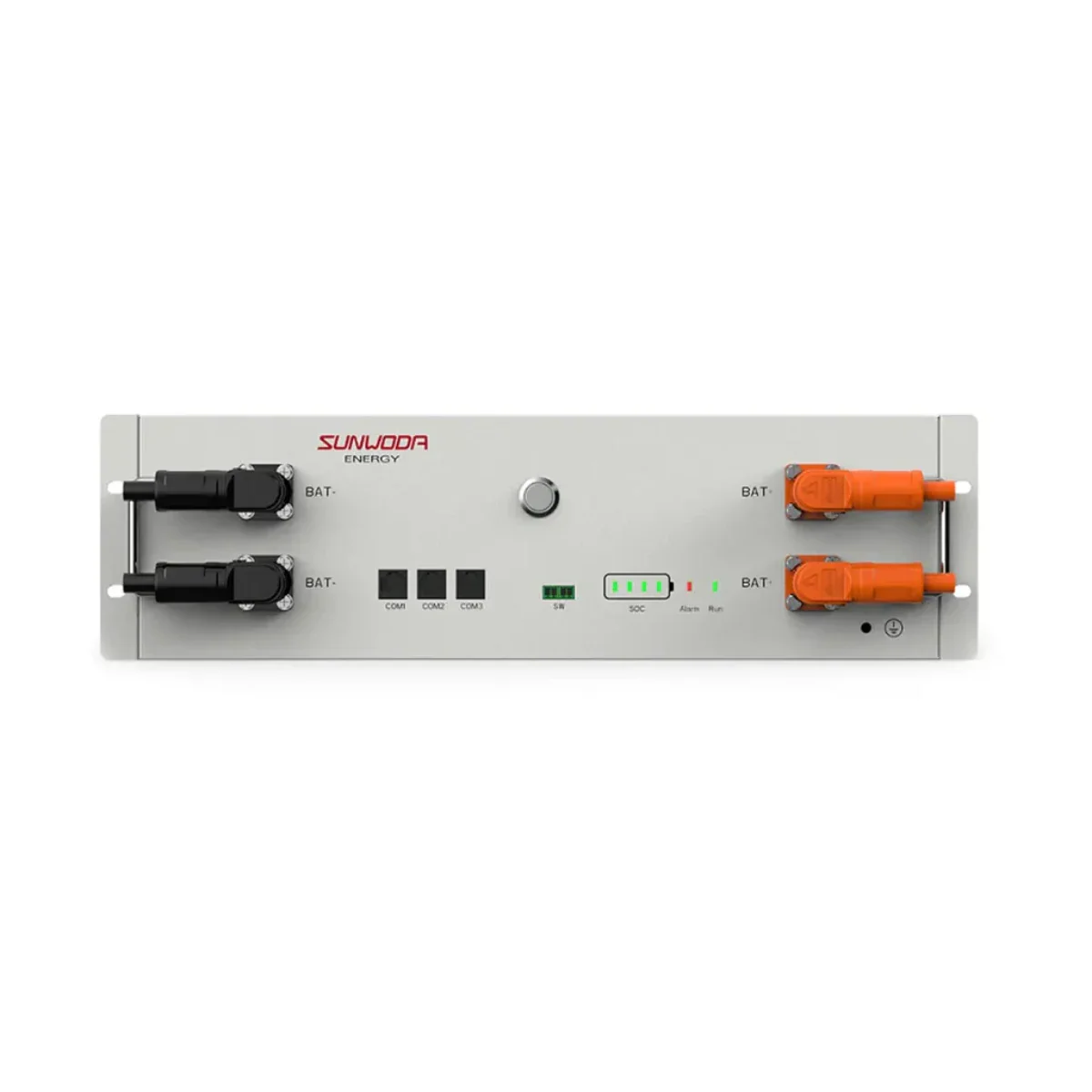

5KWH Sunwoda Rack mount Battery 48v
R9,500.00
Description
Sunwoda Atrix series adopts a flexible modular design, which can be expanded from 5 kWh of a single module to 40 kWh of 8 battery modules.
Technical Specifications: Sunwoda 5kWh Battery
| Feature | Specification |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4/LFP) |
| Nominal Energy | 5.12 kWh |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Charge/Discharge Cut-off | 44.8 V – 55.2 V |
| Rated Charge/Discharge Current | 50 A / 50 A |
| Max. Charge/Discharge Current | 100 A / 100 A |
| Roundtrip Efficiency | > 95% |
| Communication Interface | CAN 2.0 / RS485 |
| Scalability | Up to 8 units in parallel (max 40.96 kWh) |
| Cycle Life | 6000+ cycles (typical) |
| IP Rating | IP20 (Indoor use) |
| Operating Temperature | -10°C to 50°C |
| Dimensions (approx.) | ~433 × 482 × 135 mm |
| Weight | ~45 kg |
-
Safety First: Utilizes LiFePO4 chemistry, known for high thermal stability and fire safety compared to older lithium-ion technologies.
-
Cost-Effective: Often marketed as a “budget-friendly” option that does not compromise on build quality or “A-grade” cell performance.
-
Scalable Power: The modular design allows you to start with one 5kWh unit and expand up to 40kWh+ as your power requirements grow.
-
Wide Compatibility: Features standard CAN/RS485 communication, making it compatible with most major brands of hybrid inverters (e.g., Luxpower, Deye, Sunsynk).
-
Easy Installation: Designed for standard 19-inch rack mounting, offering a clean, professional “plug-and-play” installation.
