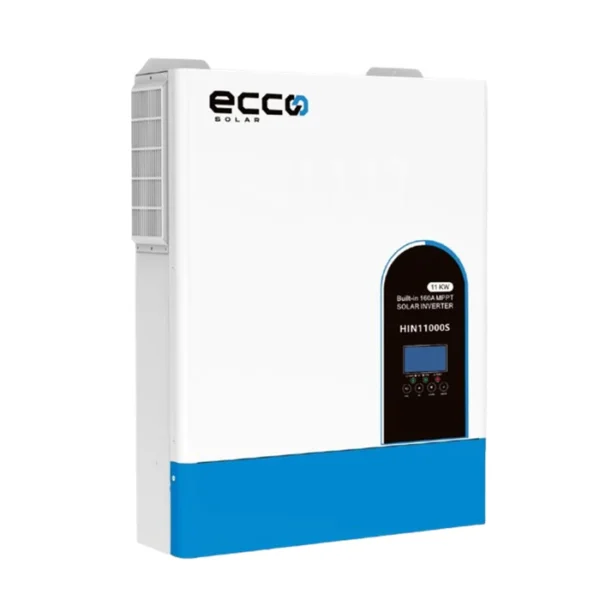

11kw ecco Hybrid Inverter

Description Hybrid Inverter 48v 11 Kva 11000w MPPT 160A Inverter Pure Sine Wave – Ecco

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems. Product Features Built-in 2 MPPT Lithium battery activation function by PV or Utility • Compatible work with LiFePO4 battery via RS485 Pure Sine Wave Power factor 1.0 PV Input 500Vdc Max Built-in MPPT 160A Capable to work without battery Detachable dust cover for harsh environment Wifi remote monitoring optional Support multiple output priority: SUB,SBU, SUF EQ function to optimize battery performance and extend lifecycle Specifications: MODEL : HIN11000S Capacity : 11KVA/11KW Maximum PV Input Power : 11KW Parallel Capability : NO Lithium Battery Activation : YES (BY PV  OR UTILITY) Lithium Battery Communication : YES(RS485) INPUT

Nominal Voltage : 230VAC Acceptable Voltage Range : 170-280VAC(For Personal Computer) : 90-280VAC (For Home Appliances) Frequency : 50/60 Hz (Auto Sensing) OUTPUT

Nominal Voltage : 220/230/240VAC Surge Power : 22000VA Frequency : 50/60 Hz Waveform : Pure Sine Wave Transfer Time : 10ms(For Computers) 20ms(For Home Appliances) Peak Efficiency : 94% Overload Protection : 5s @ 140% Load BATTERY

Battery Voltage : 48V Maximum Discharge Current : 220A Floating Charge Voltage : 54VDC OverCharge Protection : 63VDC Charging Method : CC/CV SOLAR CHARGER & AC CHARGER

Solar Charger TYPE : MPPT Max.PV Array Power : 5500W2 Max. PV Array Open Circuit Voltage : 500VDC PV Array MPPT Voltage Range : 60VDC-500VDC Max. Solar Input Current : 18A2 Max. Solar Charge Current : 160A Max. AC Charge Current : 120A Max. Charge Current : 160A PHYSICAL

Dimensions, D x W x H(mm) 540 X 415X 122 Net Weight (Kgs) 15KG Communication Interface RS232/RS485/DRY CONTACT LCD ENVIRONMENT
