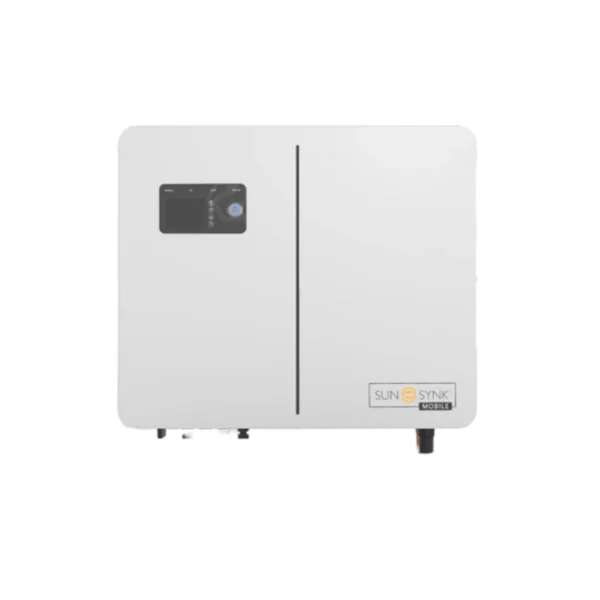

Sunsynk Lynks 8kW Hybrid Inverter

Model Lynks 8kW
Battery Input Parameters
Supported Battery Type Li-Ion or Lead-acid
Nominal Battery Voltage 48V
Battery Input Voltage Range 40~60V
Max. Charge Voltage ≤60V (Configurable)
Max. Charge Current 150A (Configurable)
Max. Discharge Current 180A (Configurable)
Battery Capacity (Recommended) 100~2000Ah
Charge for Li-Ion Battery Pack Communicating with BMS of Battery Pack
PV String Input Parameters
Max. DC Input Power 10000W
DC Input Voltage 500V
MPPT Voltage Range 120-450V
Start-up Voltage 150V
Max. Input Current 23A x 2 = 46A (2 MPPT Channels)
AC Output Parameters (Back-Up)(Feed to Essential Load)
Max. Output Power 8000W
Max. Output Apparent Power 8000VA
Peak Output Apparent Power 16000VA
Max. Output Current 36A
Nominal Output Voltage 220/230/240Vac Single-Phase (Configurable)
Nominal Output Frequency 50/60Hz (+/-0.2%) (Configurable)
Max. Bypass Current 42A
Shift Time (Bypass and Inverter) 10ms
Output THDv (Resistor Load) <3%
AC Input Parameter (On-Grid)(Bypass to Essential Load & Charge the Battery/Feed to Home Load)
Max. Input Power 8000W
Max. Output Power (Feed to Home Load) 8000W
Max. Apparent Input Power 8000VA
Max. Apparent Output Power 8000VA
Nominal Input/Output Voltage 220/230/240Vac (Auto Adjusted to Fit Home Grid)
Nominal Input/Output Frequency 50/60Hz (Auto Adjusted to Fit Home Grid)
Max. Bypass Current 42A
Shift Time (Bypass and Inverter) 10ms
Efficiency
Max. Efficiency 97.6%
Max. Battery to Load Efficiency 94.0%
Europe Efficiency 97.6%
MPPT Efficiency 99.9%
